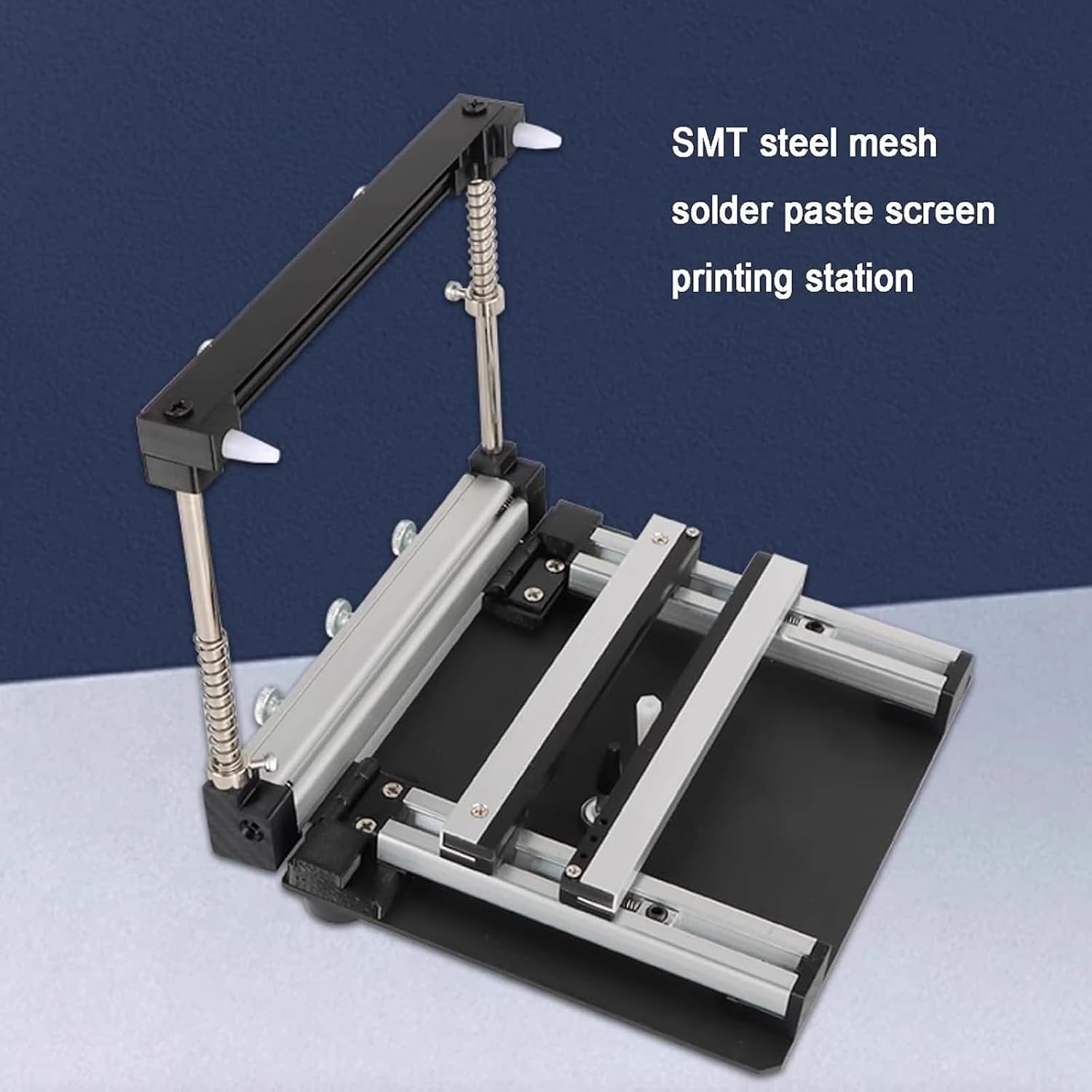

YZHYY Manual Small Screen Printing Station, SMT Steel Mesh Solder Paste Printing Table with Scraper, Adjustable Thickness, PCB Stencil Printer, Precision Printing, Easy to Operate, for PCB Assembly

PCB prototype design and small-scale SMT assembly; DIY electronic projects or repair work; welding technology education and trainingSpecifications:Name: Manual Small Screen Printing StationMaterial: Aluminum alloyPrinting speed: Manual control10cm:Screen printing table size: 13.5×16.5×5cm (5.3×6.5×2 inches)Maximum size of circuit board (horizontally): 6.5×12cm (2.6×4.7 inches)Effective printing range: 5.5×8cm (2.2×3.1 inches)Thickness adjustment: 0.8-1.6mm (default 1.2mm)Weight: 750g15cm:Screen printing table size: 21.5×22×6.5cm (8.5×8.7×2.6 inches)Maximum size of circuit board (horizontally Horizontal): 11.5×17cm (4.5×6.7 inches)Effective printing range: 10×13cm (3.9×5.1 inches)Thickness adjustment: 0.8-2.0mmWeight: 1680g20cm:Screen printing table size: 26×26.5×6.5cm (10.2×10.4×2.6 inches)Maximum size of circuit board (horizontal): 16.5×22cm (6.5×8.7 inches)Effective printing range: 15×18cm (5.9×7.1 inches)Thickness adjustment: 0.8-2.0mmWeight: 2010gPacking list:1× Solder Paste Screen Printing Machine1× 4-inch scraper1× Phillips screwdriver1× Hexagon screwdriver2× Limiting magnetic posts (only 15/20cm models have, 10cm does not)Notes:1. Due to different manual measurements, please allow a 1-2cm difference in size.2. After receiving the goods, if you find any problems, please contact us in time and we will help you solve it as soon as possible!

• 【PCB STENCIL PRINTER】For small and medium batch production. Its function is to accurately and moderately distribute solder paste to PCB pads through metal printing templates.
• 【ADJUSTABLE】The printing frame of the substrate can be moved left and right, front and back. The workbench is equipped with knobs that support forward, backward, left, and right movement, and is suitable for various screens.
• 【HIGH-QUALITY MATERIAL】The working platform of the solder paste printer is made of high-quality metal with honeycomb positioning holes and thickened bottom plate, which is sturdy and durable.
• 【PRECISION PRINTING】This solder paste printer has an excellent repeatability of ±0.01mm. It contains positioning pins and ejector pins for easy positioning, ensuring precision for repetitive tasks
• 【NON-SLIP BASE】The base is equipped with 4 non-slip support feet to ensure the stability of the solder paste printer during operation, thereby ensuring the working accuracy of the solder paste printer.
